Barrel Lifting Frame

Scope

The client required a lifting cage to cater to 210L Oil Drums weighing up to 250kg.

Requirements

The following requirements were noted prior to the design of the lifting frame.

– The lifting frame required a low headroom profile to accommodate existing height restrictions in their facility.

– The lifting frame required a mechanism by which to easily manoeuvre the barrels into position and then securely strap them into position.

– The frame was required to be light weight so as to be placed into storage by means of manual handling when required.

Solution

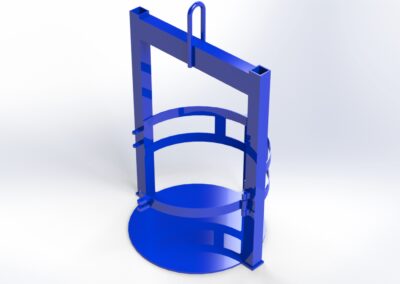

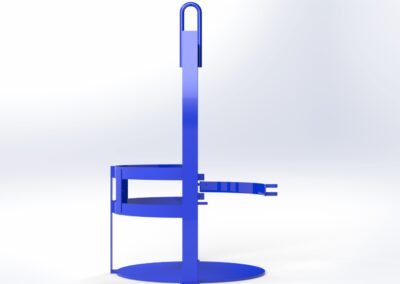

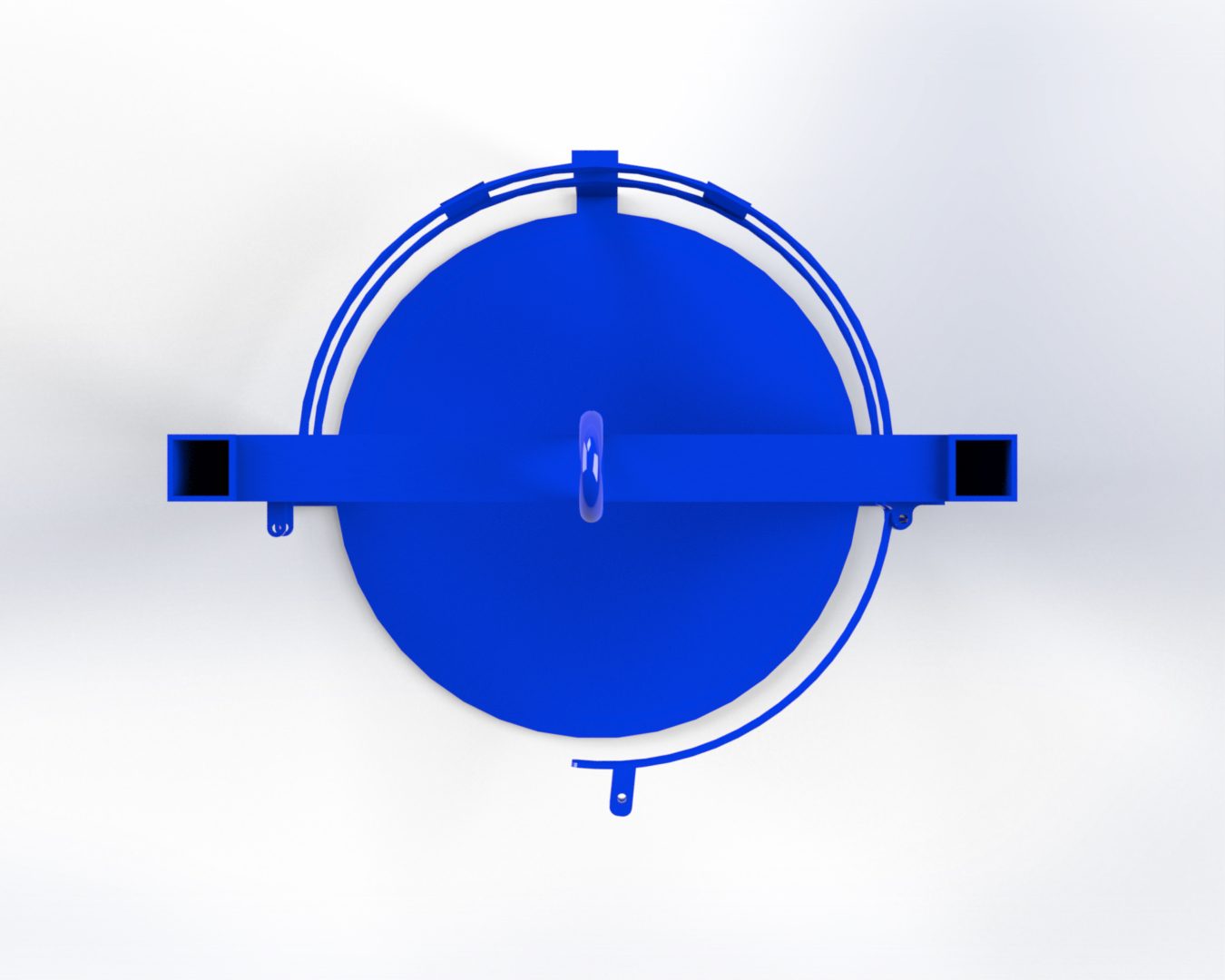

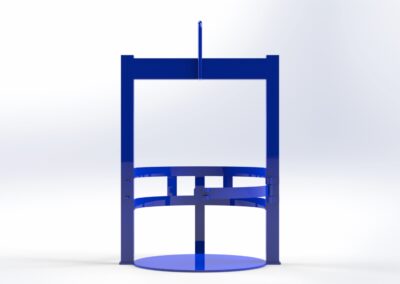

The solution provided was a low profile barrel lifting cage complete with…

– Round Bar Top Lifting Point to engage directly with the crane hook

– Light weight Box Section Frame

– Hinged strapping mechanism to secure the barrel during movement.
